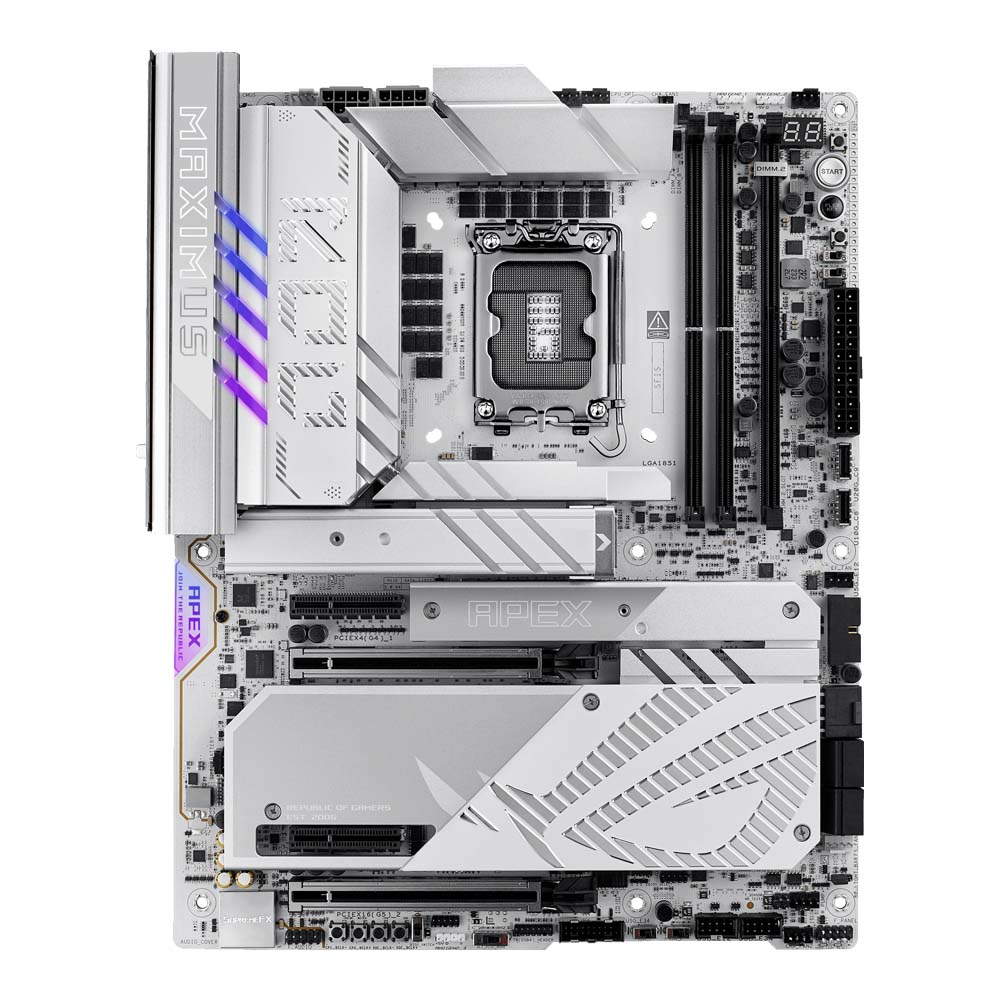

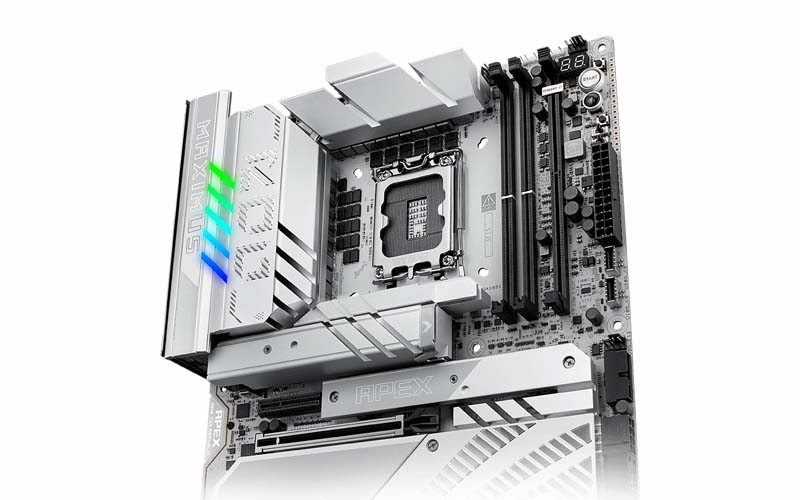

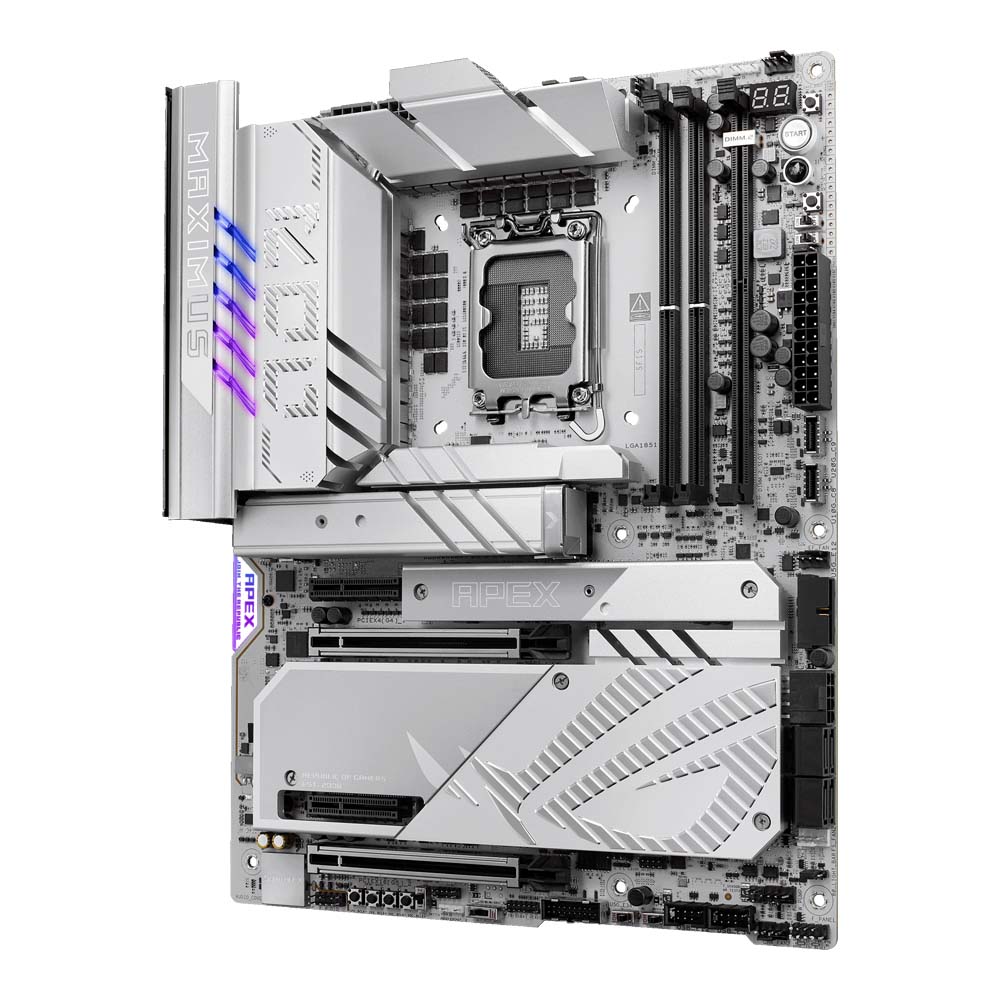

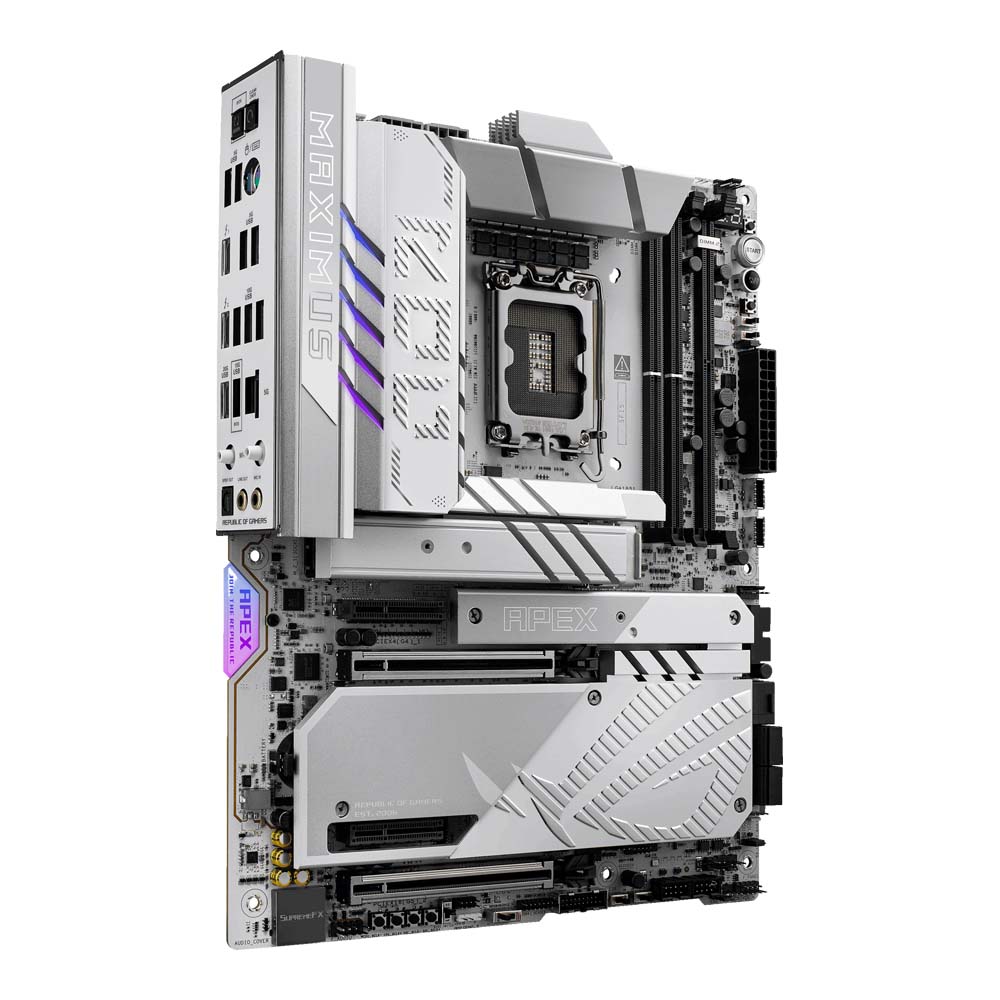

ROG MAXIMUS Z890 APEX

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.



---





OVERCLOCKING

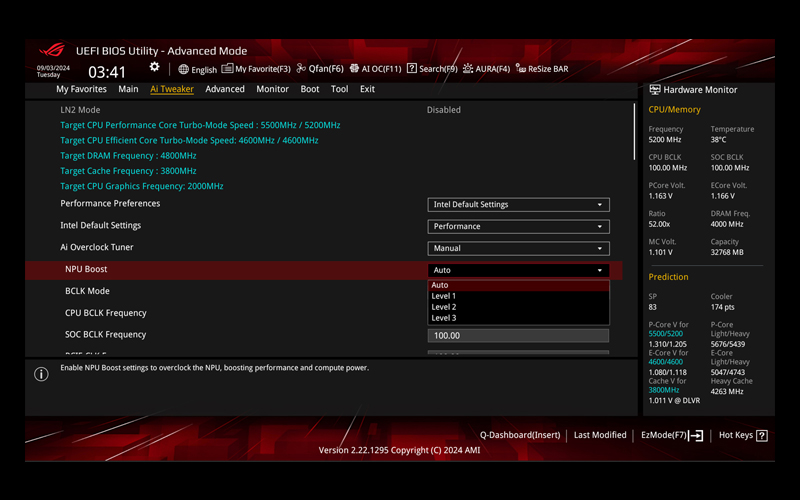

NPU BOOST

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

* The overclocking performance may vary depending on the CPU series and motherboard used.

** Testing was conducted with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).



---

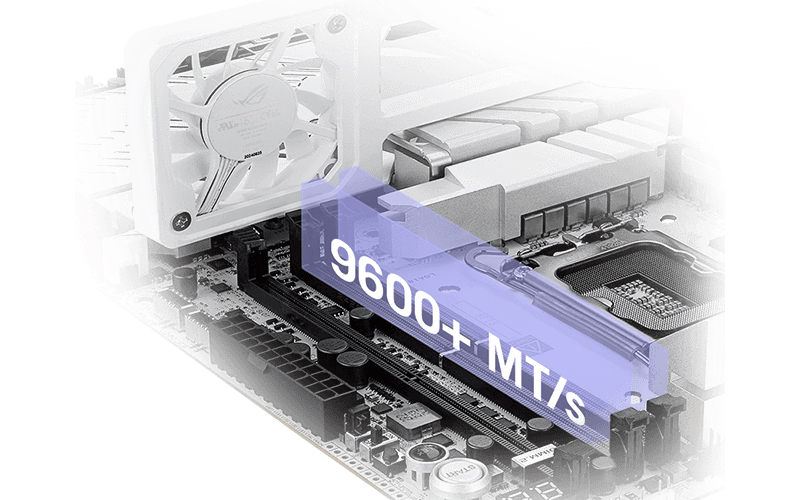

DDR5 DOMINATION

Thanks to improved signal routing, now enthusiast-grade kits can be driven beyond the 9 GT/s mark on the ROG Maximus Z890 Apex*.

*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

DIMM FIT

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FLEX

DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

* Results may vary according to the capabilities of your CPU, graphics card, motherboard, and memory modules.

** The comparison chart is based on a test with an Intel® Core™ Ultra 5 245K processor, ROG MAXIMUS Z890 EXTREME motherboard, ROG Strix GeForce RTX™ 4090 OC Edition 24GB graphics card, and G.SKILL DDR5 memory modules (model F5-8800C4255H24GX2-TZ5CK).



---

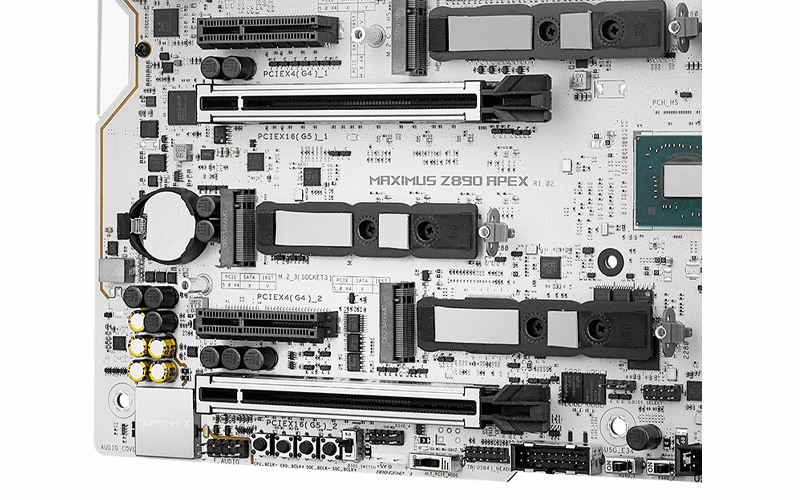

M.2 SLOTS WITH ROG M.2 POWERBOOST

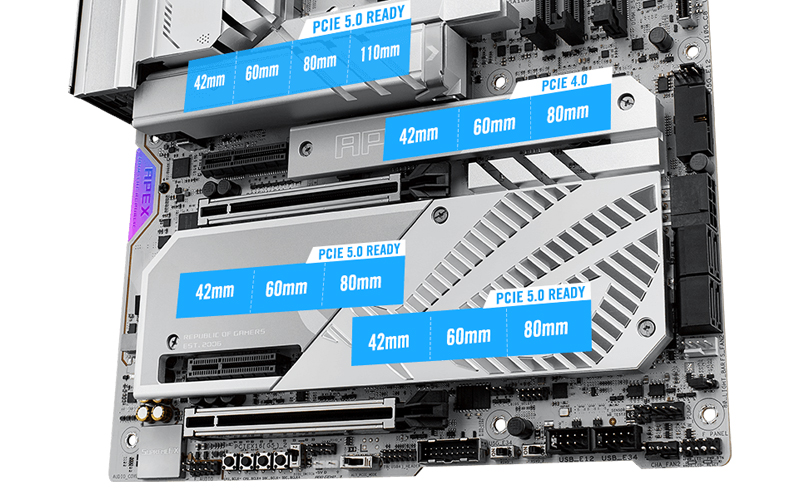

FOUR ONBOARD M.2 SLOTS

The ROG Maximus Z890 Apex features four onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the other slot offers still-impressive 8 GB/s through the PCIe 4.0 interface.

ROG M.2 POWERBOOST

ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all four onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.



---

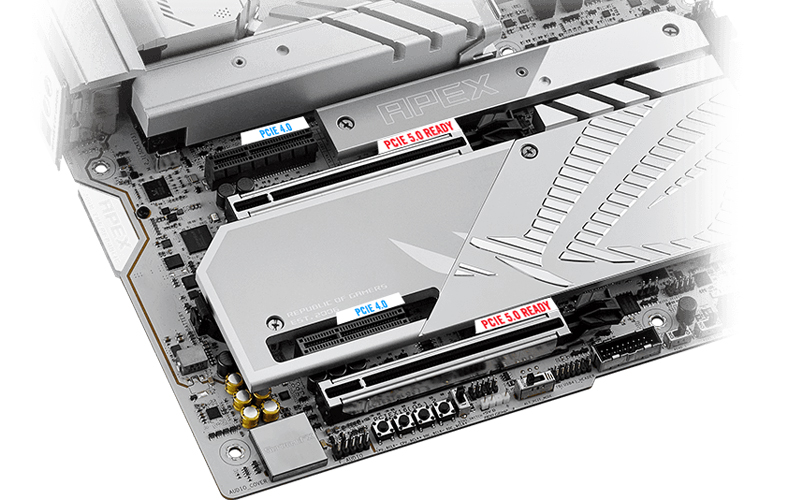

PCIE 5.0 EXPANSION SLOTS

Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim.



---





WIFI 7

The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

Learn more about Multi-link Operation (MLO) and WiFi 7 technology.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320MHz channels in the 6GHz band may be unavailable in some regions/countries due to regulatory restrictions.

**Specifications vary by model.

5Gb ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.

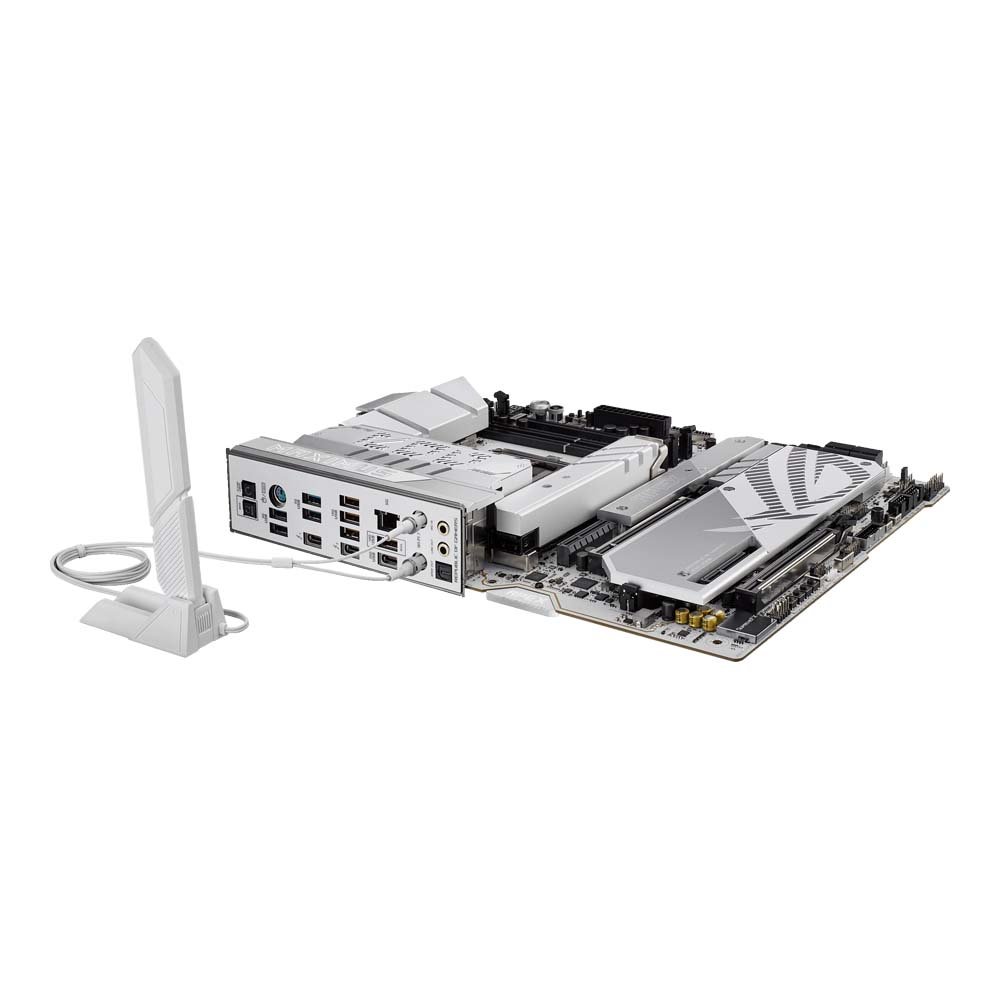

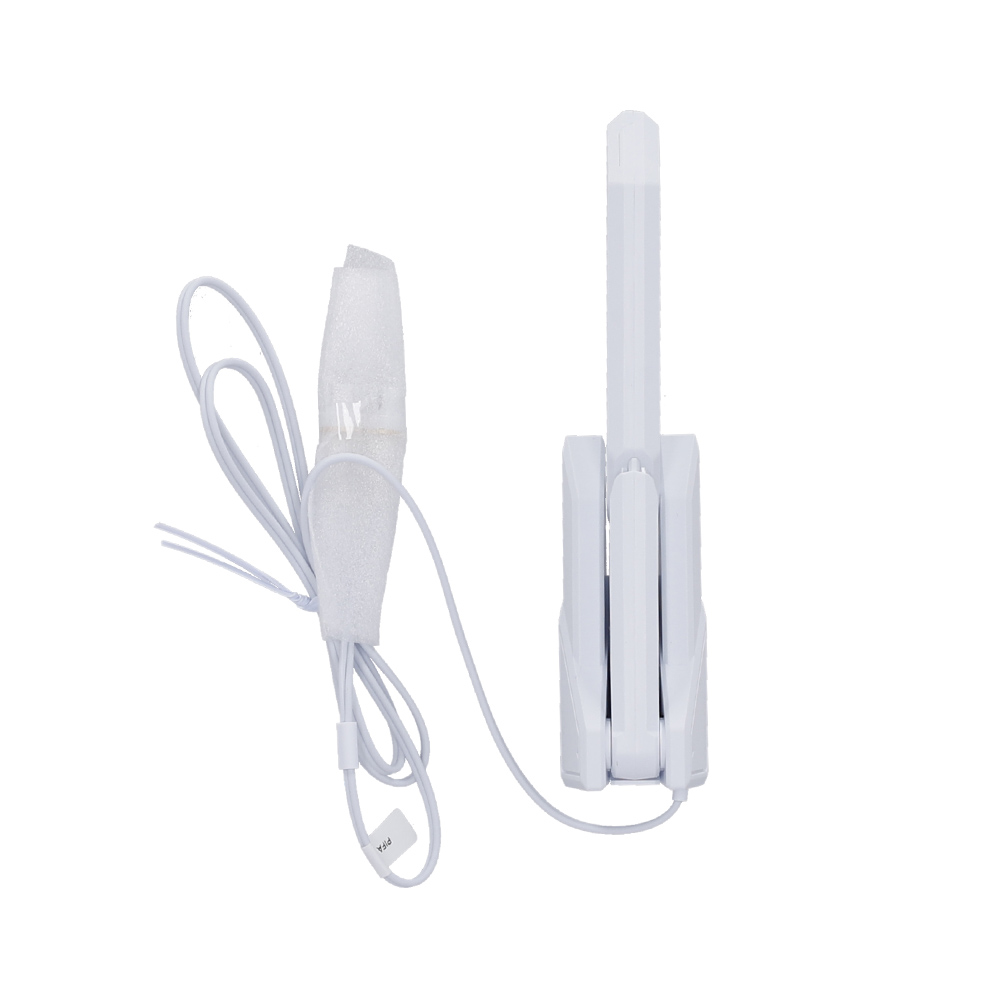

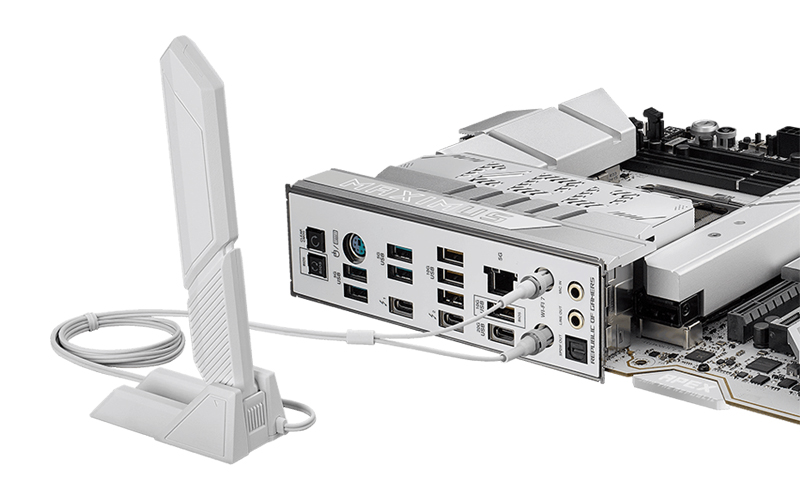

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Wireless Signal Reception Improvement Versus previous-generation antenna

Up to +6% 6GHz

Up to +18% 5/2.4GHz



---

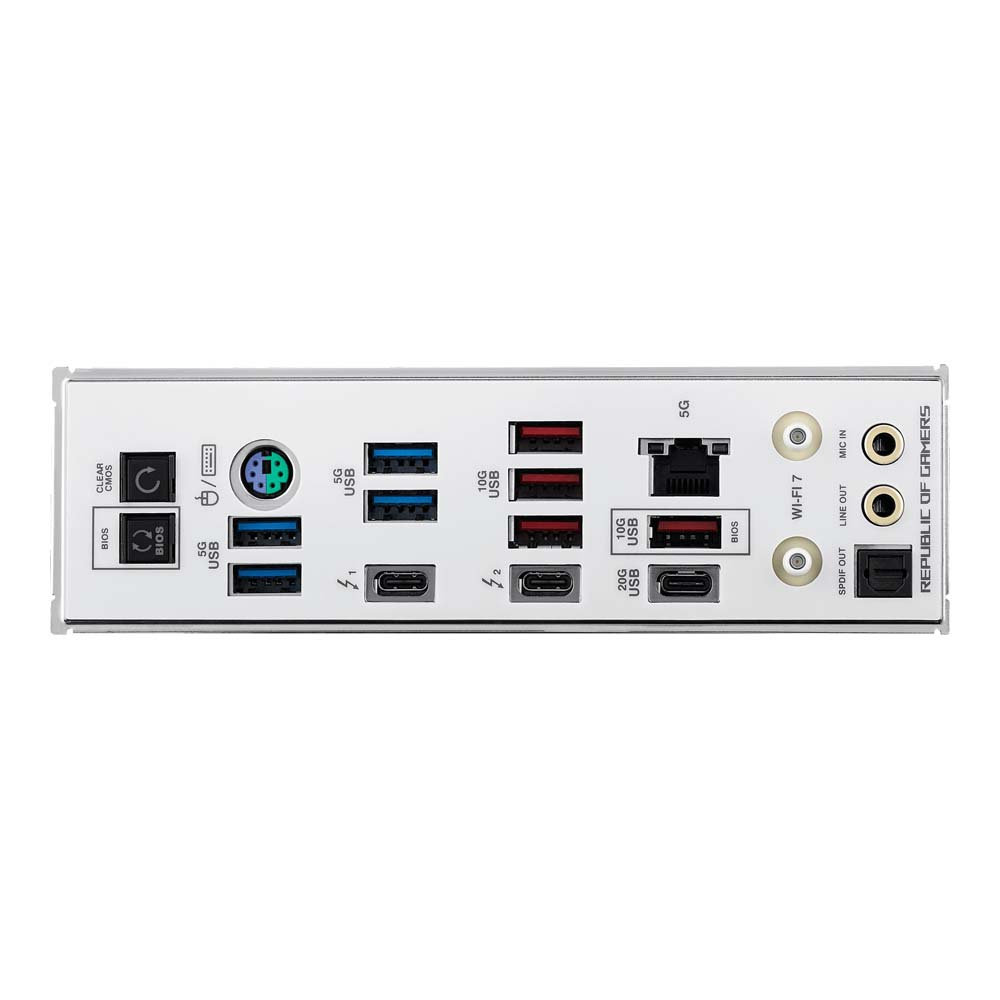

TWO THUNDERBOLT 4 TYPE-C® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt Display function supports up to 8K with DSC. Please see specifications for more details.

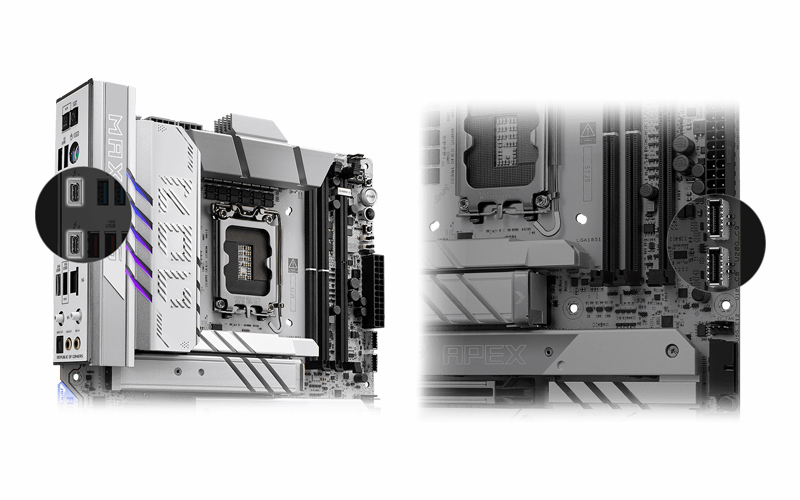

ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS

The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.

* USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

** To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.



---





SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Maximus Z890 Apex's SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback. The front-panel output is streamed through a highly integrated Savitech amplifier that is capable of driving a wide variety of gaming headsets and high-fidelity headphones.



---





GLOW YOUR GAMING WORLD WITH AURA SYNC

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.



---

รูปภาพทั้งหมดมีวัตถุประสงค์เพื่อเป็นภาพประกอบเท่านั้น / All images are for illustrative purposes only.

---
