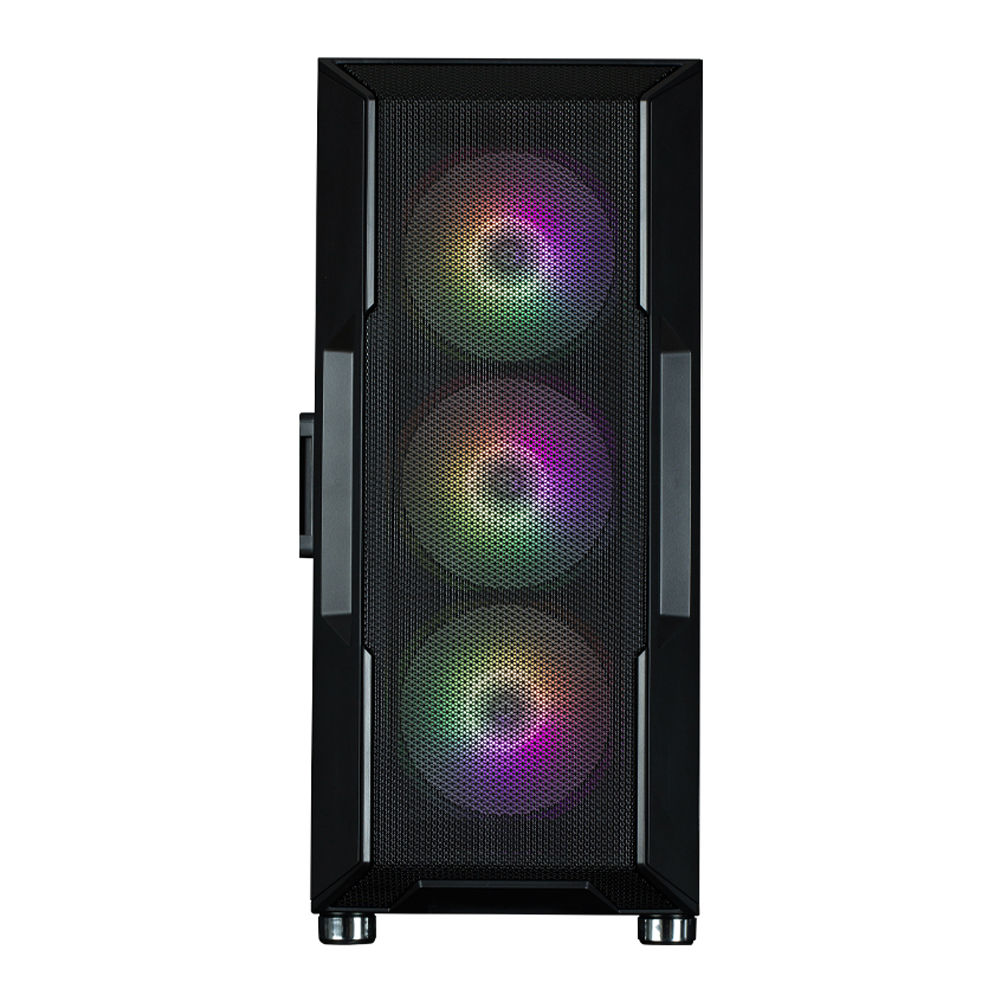

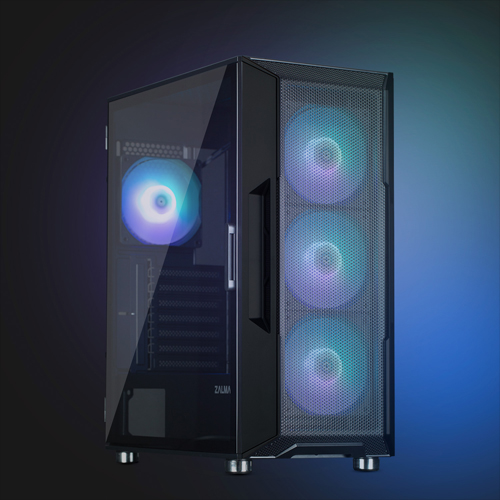

Front mesh panel and RGB fans provide optimal airflow and stunning ARGB lighting effects

Front mesh panel and RGB fans provide optimal airflow and stunning RGB lighting effects (Support up to 8 Fans)



---

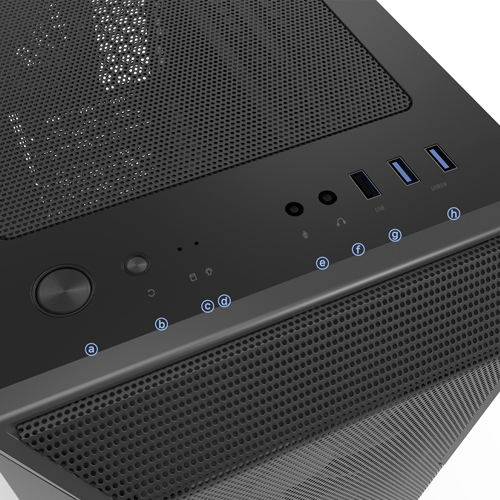

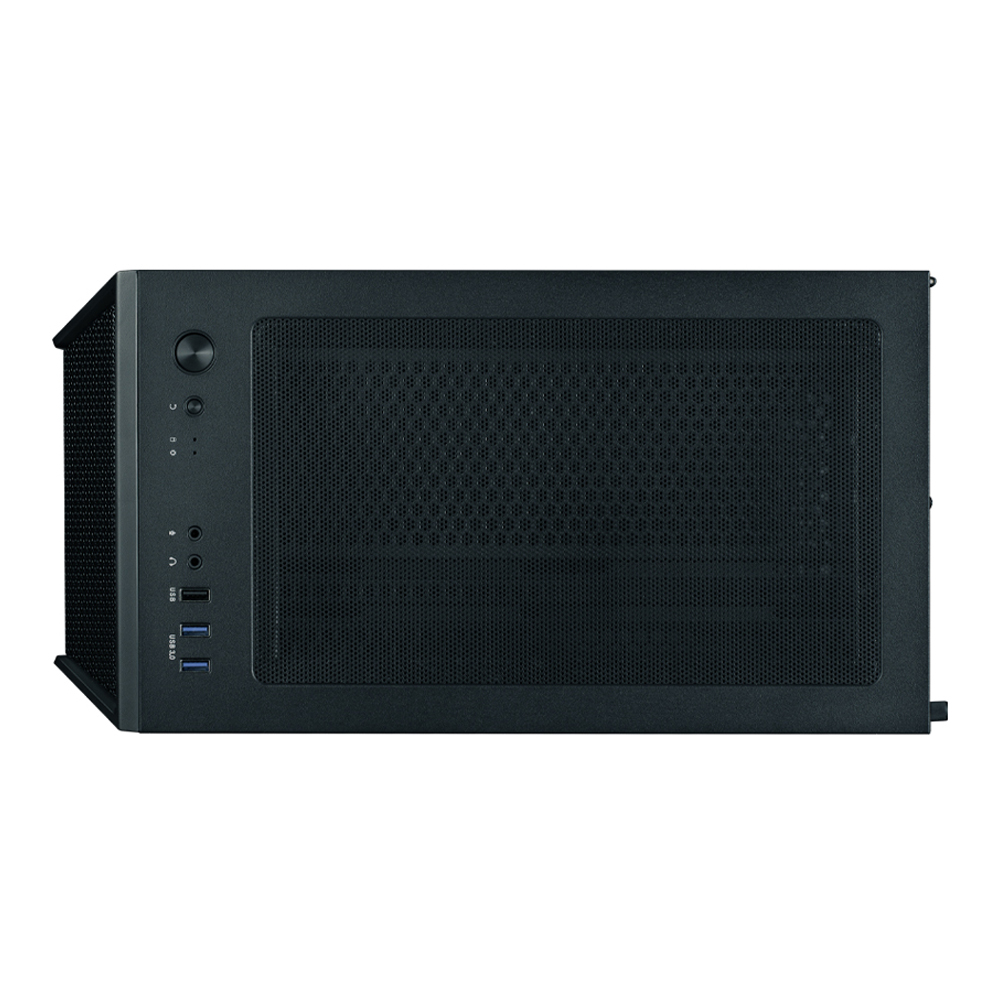

Easy accessible design on top I/O ports

a. Power

b. Reset

c. HDD / Power LED

d. Microphone Jack

e. Headphone Jack

f. USB 2.0 Port

g. USB 3.0 Ports



---

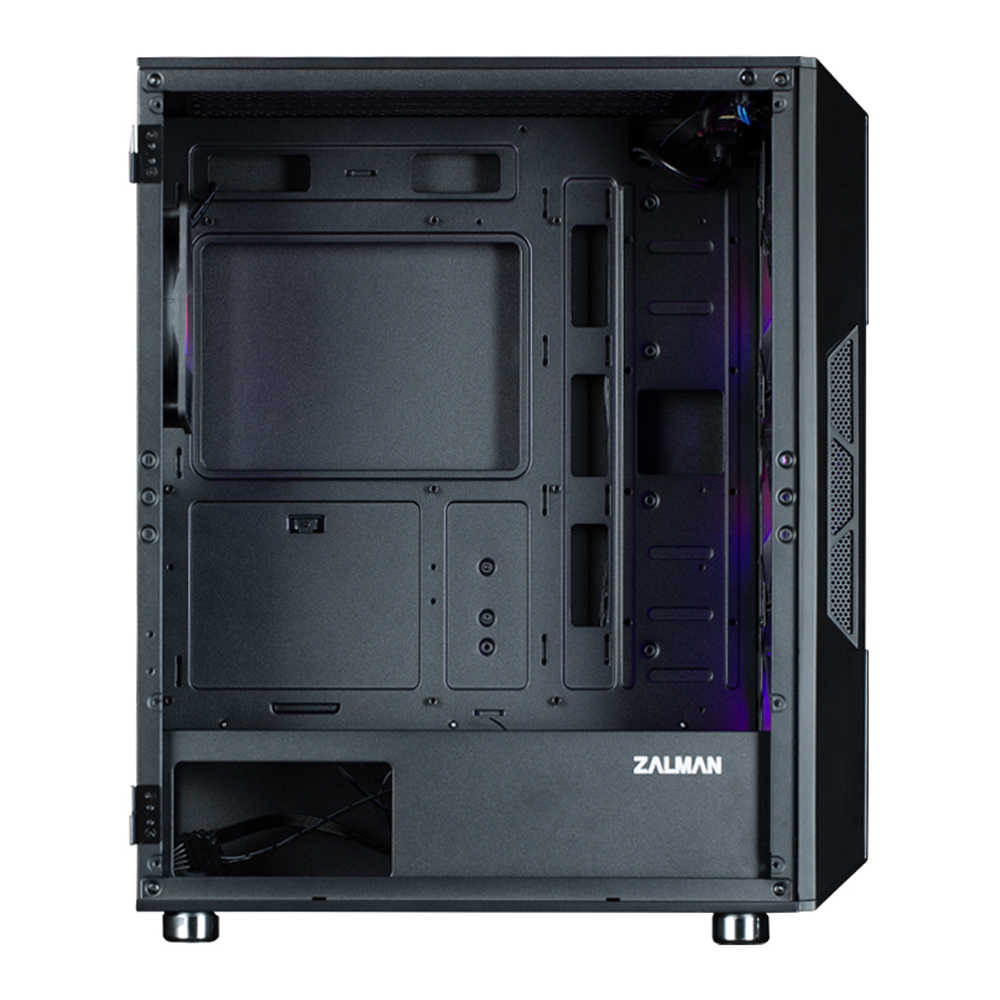

Excellent Expandability and Convenience

Tool-free design allows for easy removal of each part without tools for your convenience

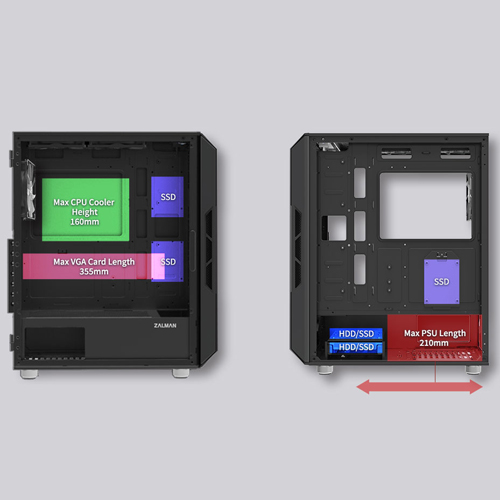

Motherboard Support : ATX / mATX / Mini-ITX

CPU Cooler Max Height : 160mm

VGA Card Max Height : 355mm

PSU Max Length : 210mm (Without Drive Bay : 350mm



---

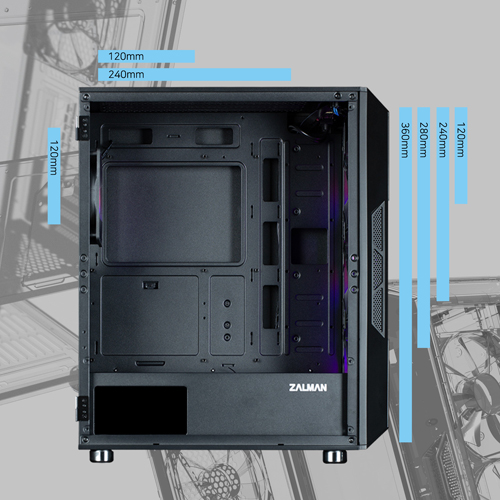

Radiator Configuration

Front : 120mm / 240mm / 280mm / 360mm

Rear : 120mm

Top : 120mm / 240mm



---

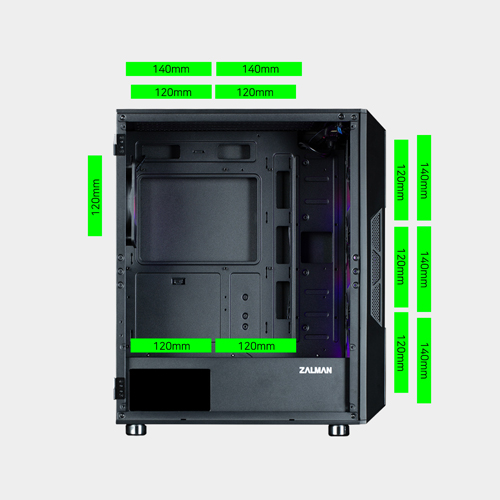

Fan Support

Front : 3 x 120mm / 3 x 140mm

Rear : 1 x 120mm

Top : 2 x 120mm / 2 x 140mm

Bottom : 2 x 120mm



---

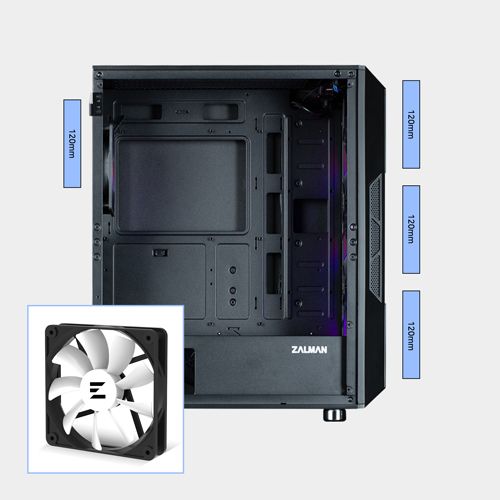

Maximum Airflow and Ventilation

4 pre-installed 120mm ARGB fans (Front x 3, Rear x 1) and optimized ventilation providing fast heat dissipation in the case (Supports up to 8 fans)

Fan Specifications

• Dimensions : 120 x 120 x 25(T)mm
• Bearing Type : Hydro Bearing
• Max Fan Speed : 1,100 RPM ±10%
• Max Airflow : 45.36 CFM
• Max Noise Level : 21.65 dB(A)
• Life Span : 40,000 hours



---

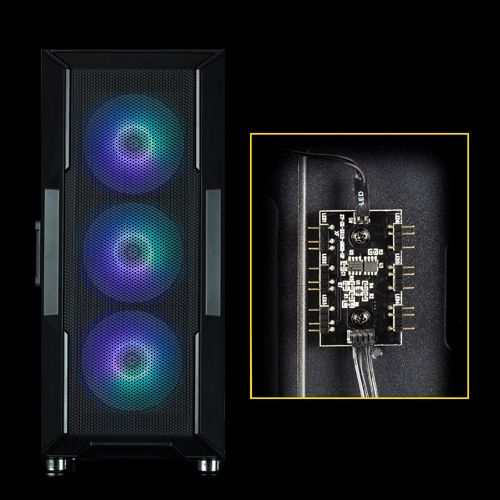

ARGB CONTROLLER

RGB control hub and top control button enable variety RGB effects. Connect to motherboard 5v RGB pin header to create various RGB modes.

※ How to use ARGB controller

- Press the I/O LED button to change the LED pattern and color.(26 patterns)

- Press and hold the Led button for 3 seconds to sync the motherboard after the white light flashes once.

- Press and hold the Led button for 6 seconds to turn off the LED after the white light flashes twice.

- Press the LED button again to disconnect the motherboard sync and change the controller mode.



---

Source : Zalman I3 NEO ARGB

---
